HOME > PRODUCT&SERVICE > Product Description > Fiberglass Products for Open Molding

Fiberglass Products for Open Molding

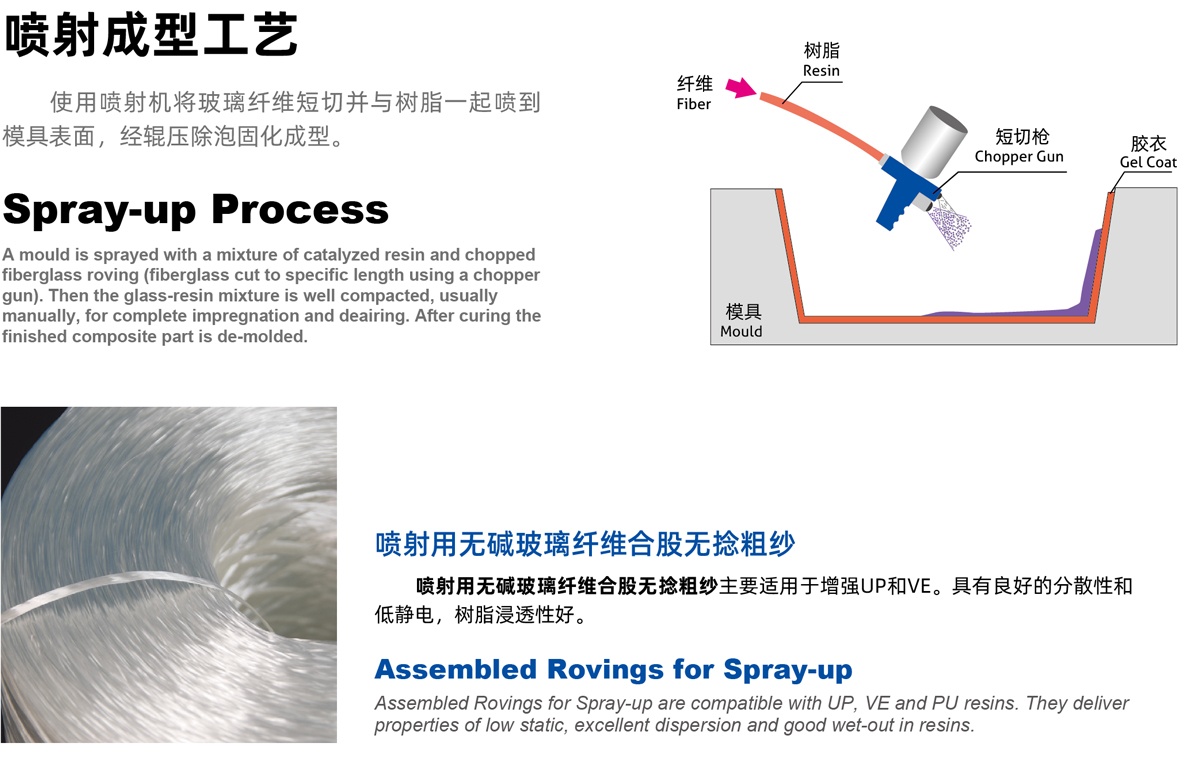

Spray-up Process

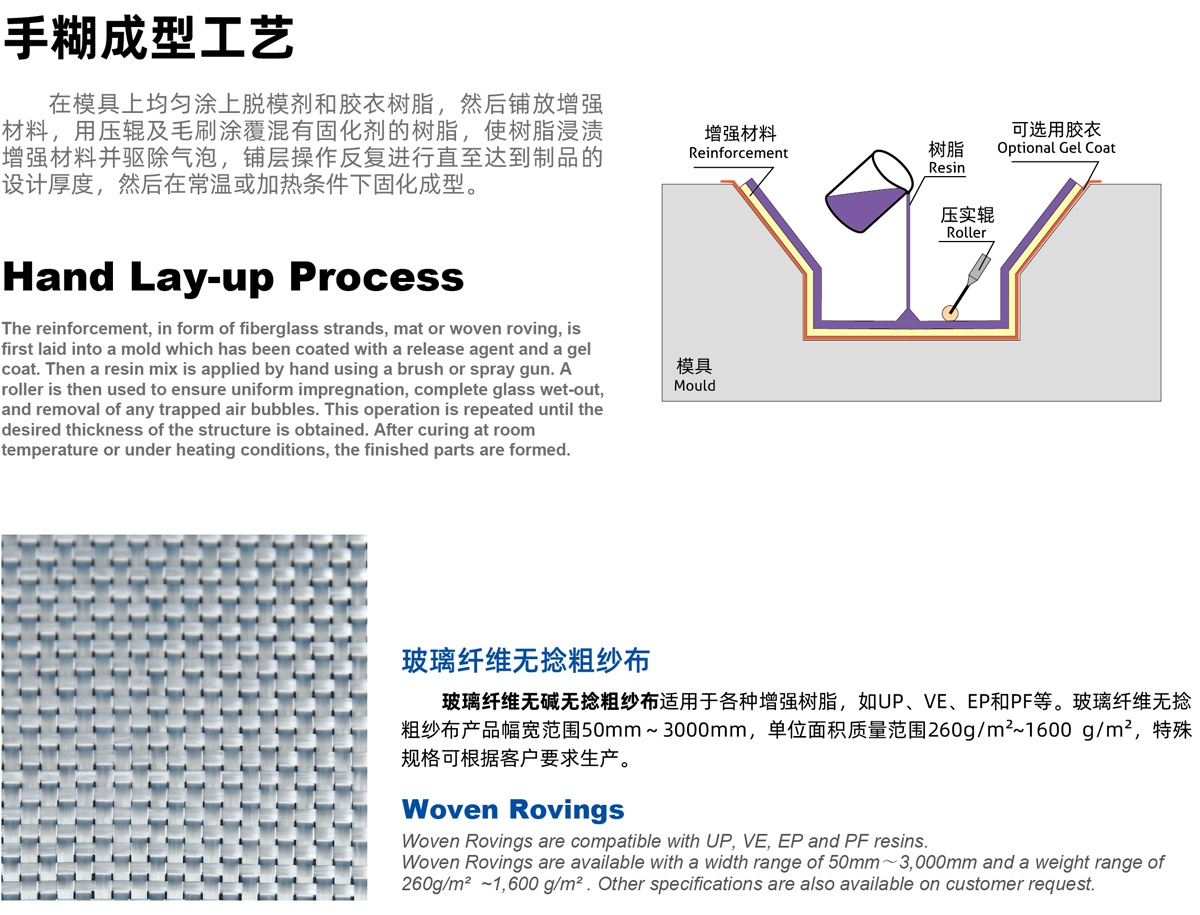

Hand Lay-up Process

產品牌號 Product Code	產品特點 Product Features	典型應用 Typical Application	手冊下載 Data Download
176	噴射順暢性好，噴射分散面較大，浸透速度較慢，垂直面不易滑落，適合生產大尺寸制件 Good runnability for spraying operation, larger dispersion area in spraying, slower wet-out, less slide on vertical surfaces, suitable for production of large parts	游泳池、儲罐、船艇 Swimming pools, storage tanks, boats & yachts	176
180	噴射操作順暢性好，浸透速度適中，易輥壓，易排泡，小角度無回彈，制品力學性能和耐水性能優異，適合高速的機械手噴射工藝 Good runnability for spraying operation, moderate wet-out speed, easy roll-out, easy removal of bubbles，no spring back in sharp angles, excellent mechanical properties and hydrolytic resistance in parts, suitable for high-speed spray-up process with robots	衛浴、玻璃鋼船體、汽車配件、化學貯罐 Sanitary ware, FRP hulls, auto parts, chemical storage tanks	180
180K	浸透速度快，特別適合小的制品 Fast wet-out,ideal for products with small surface	浴缸 Bathtubs	180K

產品認證 Certification	認證產品規格 Product Code	證書號 Certificate No
挪威船級社(DNV) DNV	EWR270	TAK00001TH
	EWR360
	EWR580
	EWR600
	EWR800
英國勞氏船級社(LR) LR	EWR270	LR2002408ALP
	EWR360	LR2002409ALP
	EWR580	LR2002410ALP
	EWR600	LR2002411ALP
	EWR800	LR2002412ALP

產品牌號 Product Code	產品特點 Product Features	手冊下載 Data Download
E01	拉伸強度高，適用于生產面積較大的產品，操作時無飛揚，樹脂浸穿性好, 浸透速度快，氣泡容易排除，制品機械強度高，具有優異的耐酸腐蝕性 High tensile strength, allowing for use in hand lay-up process to produce large-area parts, no airborne fiber when operating, good wet-through and fast wet-out in resins, rapid air lease, high mechanical strength, superior acid corrosion resistance	E01
E10	輥壓排泡性非常好，樹脂含量低 Rapid air lease reducing rolling out times, low resin consumption	E10
E20	覆模性好，樹脂浸穿性好，浸透速度快，氣泡容易排除，減少輥壓次數, 樹脂消耗少，制品機械強度高，優異的耐酸腐蝕性 Good moldability, good wet-through and fast wet-out in resins, rapid air lease reducing rolling out times and increasing productivity, low resin consumption, high mechanical strength of composite products, superior acid corrosion resistance	E20

產品牌號

Product Code

產品特點

Product Features

手冊下載

Data Download

P02

拉伸強度高，適用于手糊工藝生產面積較大的制品,樹脂浸穿性好,
浸透速度快，氣泡氣容易排除，制品機械強度高，優異的耐酸腐蝕性能
High tensile strength, suitable for use in hand lay-up process to produce large-area parts, good wet-through and
fast wet-out in resins, rapid air lease, high mechanical strength

P02

P20

氈質柔軟，覆模性好，方便手工撕裂，樹脂浸穿性好，浸透速度快，氣泡容易
排除，減少輥壓次數，樹脂消耗少，制品機械強度高，優異的耐酸腐蝕性能
Soft mat, ease of manual tearing apart, good conformability, good wet through and fast wet-out in resins, rapid
air release reducing rolling out times and increasing productivity, low resin consumption, high mechanical
strength of composite products, superior acid corrosion resistance

P20

產品認證 Certification	認證產品規格 Product Code	證書號 Certificate No
挪威船級社(DNV) DNV	EMC300	TAK000001TJ
	EMC450
	EMC600
	EMC900
英國勞氏船級社(LR) LR	EMC225(E)	MAST/3490/2
	EMC300(E)
	EMC450(E)
	EMC600(E)
	EMC300(P)	LR2002414LP
	EMC450(P)
	EMC600(P)
	EMC900(P)
